1. Rigid structure to assure stable working and longer machine life.

2. Bigger spindle back board and stranger gantry for vibration free machining.

3. High speed spindle with 24000 rpm for faster carving and cutting. Spindle power is optional.

4. AC Servo motor and driver for all axis to get higher speed and higher precision production.

5. Z axis servo motor with break and ball screw transaction leaving no mark on working stone surface.

6. High quality linear guide rail, heavy duty helical rack pinion and gear box in X Y axis to get vibration free even under heavy loading conditions.

7. Automatic lubrication in all axis for smoother working condition and trouble free.

8. Central water tray and movable water tank for easily bed cleaning and friendly environment .

9. Stainless steel parts and covers for anti-rust and bellows covers on XY axis to increase machine life.

TECHNICAL DATA
Model Number	ALLWELL AW2030S
Working Table Size	2200×3300mm
X Y Max Working Size	2000×3000mm
Z axis Max Vertical Movement	350mm
Gantry Height	455mm
Spindle Power	5.5KW/6.5KW/7.5KW (Water Cooling)
No.of Head	1 Head
Spindle Max Speed	24000 rpm
Cotrol System	NC Studio Control System
XY Axis Transmission	Servo Motor and Driver + Heavy Duty Helical Rack Pinion+ Linear Guide Rail, High precision Planetory Gare Box
Z Axis Transmission	Ball Screw
Inverter	Synphonix Inverter
Max XY Speed	15 m/min
Max Z Speed	3 m/min
Reposition Accuracy	±0.02mm
Self Lubrication Systemn	Automatic Time-adjustment
Spindle Cooling	Water Circulation Pump and Water Tank
Tool Cooling	Cooling Pump（Circulation Water）
Voltage/Power	AC380V/50HZ
Machine Size	2550×3990×1690mm
Gross Weight	2100KGS

Carving and cutting on granite, marble, sandstone, ceramic, quartz etc.

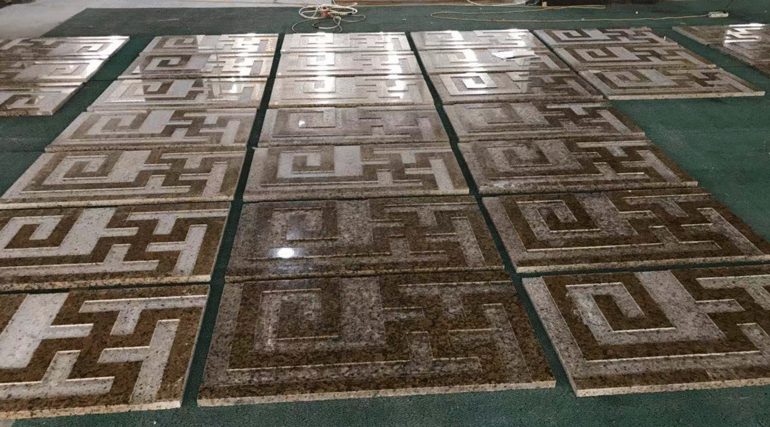

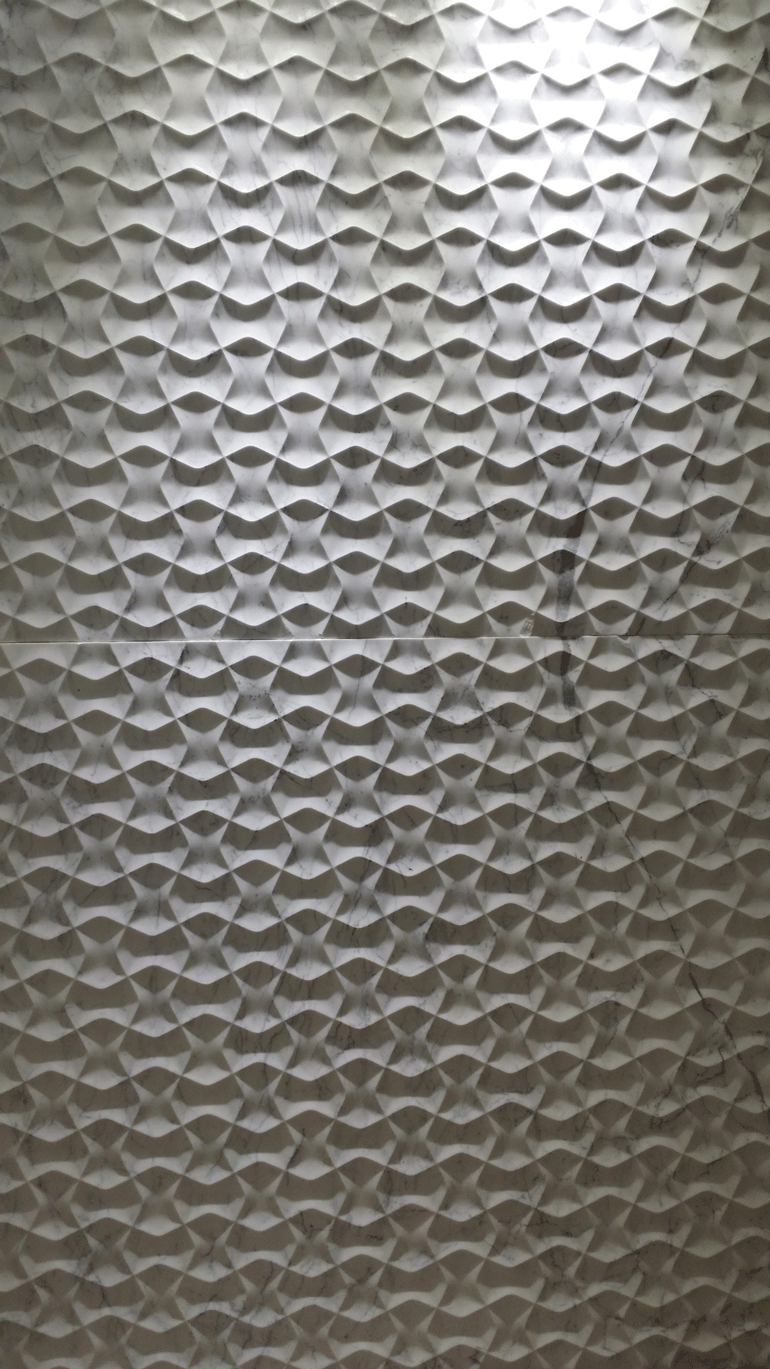

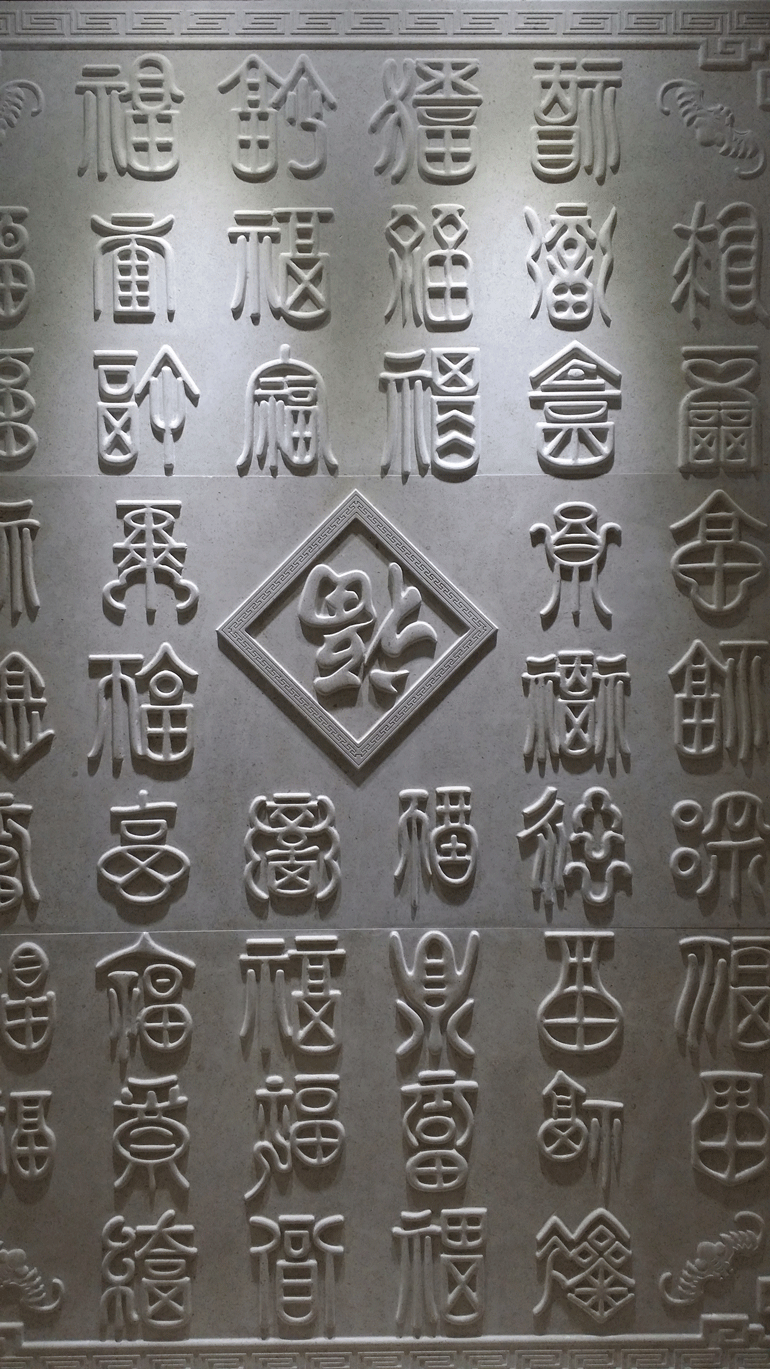

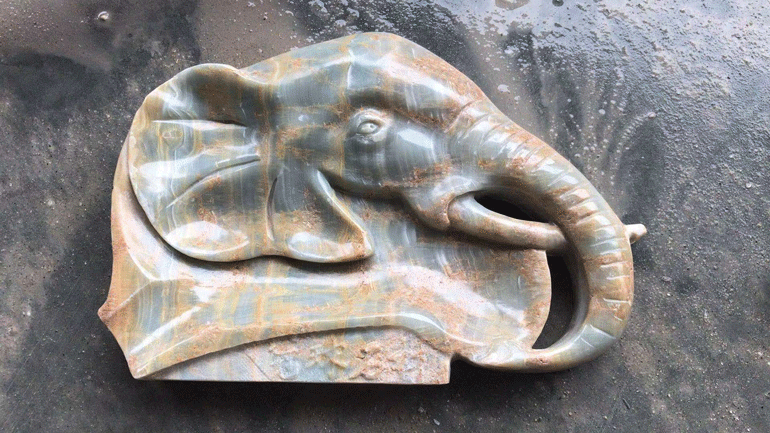

Samples:

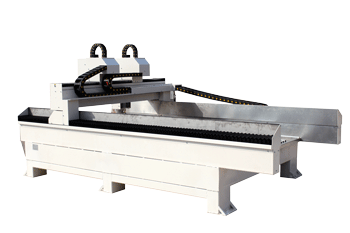

AW2030S
