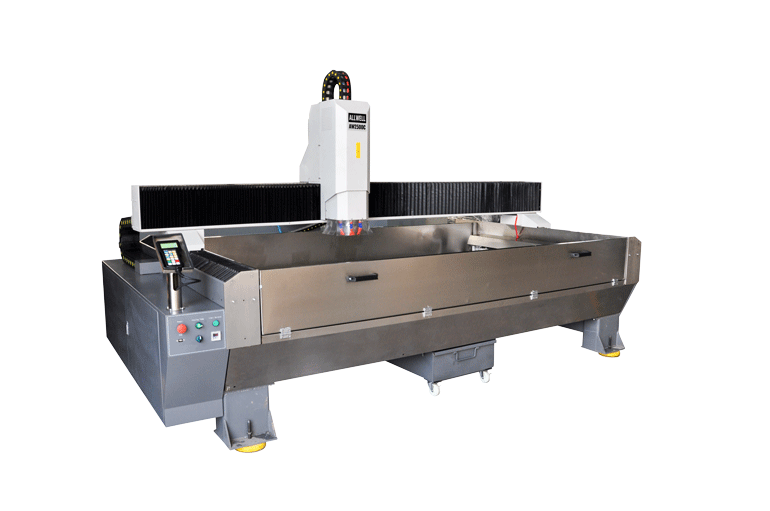

AW2500C


机器图片2.png 机器图片3.png 机器图片4.png

1. Rigid structure to assure stable working and longer machine life.

2. Bigger spindle back board and stronger gantry for vibration free machining.

3. China Top Brand BT30 big power spindle, circulation water vacuum system to get high precision cutting, profiling and polishing.

4. Stainless steel ATC with 10 tool position to anti-rust and get longer life.

5. Z axis servo motor with break and ball screw transaction leaving no mark on working stone surface.

6. AC Servo motor and driver for all axis to get higher speed and higher precision production.

7. High quality linear guide rail, heavy duty helical rack pinion in X Y axis to get vibration free.

8. Automatic lubrication in all axis for smoother working condition and trouble free.

9. Central water tray and movable water tank for easily bed cleaning and environment friendly .

10. Stainless steel parts and covers for anti-rust and bellows covers on XY axis to increase machine life.

TECHNICAL DATA
Model	ALLWELL AW2500C
X/Y Axis Max Working Size	2500×1200mm
Z Axis Vertical Movement	350mm
Gantry Height	455mm
Spindle Power	5.5 KW with ATC Functions
Spindle Type	BT30
Max Spindle Speed	15000 rpm
Spindle Cooling	Spindle Chiller
Working Table Type	Integrated Aluminum Working Table
Cotrol system	NC Studio Control System
XY Axis Transmission	Servo Motor and Driver + Heavy Duty Helical Rack Pinion+ Taiwan Linear Guide Rail + High precision Planetory Gare Box
Z AxisTransmission	Ball screw
Vacuum System	Circulation Water Vacuum Pump + Vacuum Pads
Automatic Tool Changer	10 Pieces Tool Positons on back Side
Max XY Speed	20 m/min
Max Z Speed	5 m/min
Reposition Accuracy	±0.02mm
XYZ Protective Cover	Bellows Cover
Water proof table	Stainless Steel Sink
Self-lubrication System	Automatic Time-adjustment
Tool Cooling	550W Cooling Pump（Circulation Water）
Power	380V/50HZ/9KW
Machine size	3457×1962×1683mm
Packing size	3600×2200×2150mm
Gross Weight	2100KG
Optional	Air Compressor
	Tool Holder (1/2 Gas Line, FMB, ER32)
	Vacuum Pad (90mm/120mm Round Pad, Rectangular Pad)

Cutting, drilling, profiling and polishing on granite, marble, quartz etc. for kitchen top and vanity top producing .

Samples:

厨房7.png 厨房10.png 厨房3.png
