AW2500S-II


1. Rigid structure to assure stable working and longer machine life.

2. High speed water-cooling spindle with 24000 rpm for faster carving and cutting.

3. Two spindles for repeatable working to get efficient production. Spindle power is optional.

4. AC Servo motor and driver for all axis to get faster production with higher precision.

5. Z axis servo motor with break and ball screw transaction leaving no mark on working surface.

6. High quality linear guide rail, helical rack pinion and gear box in X Y axis to get vibration free even under heavy loading conditions.

7. Automatic lubrication in all axis for smoother working condition and trouble free.

8. Central water tray and movable water tank for easily bed cleaning and environment friendly .

9. Stainless steel parts and covers for anti-rust and bellows covers on XY axis to increase machine life.

10. Strong gantry cross X axis for vibration free.

TECHNICAL DATA
Model Number	ALLWELL AW2500S-II
Working Table Size	2700×1500mm
X Y Max Working Size	2500×1300mm
Single Head Max Working Size	2100*1300mm
Double Heads Max Working Size	1200*1300mm
Z axis Max Vertical Movement	350mm
Gantry Height	455mm
Spindle Power	2×5.5KW/6.5KW (Water Cooling)
Spindle Speed	6000-24000 rpm
Spindle Numbers	2 Heads
Cotrol System	NC Studio Control System
XY Axis Transmission	Servo Motor and Driver + Heavy Duty Helical Rack Pinion+ Taiwan Linear Guide Rail, High precision Planetory Gare Box
Z Axis Transmission	Ball Screw
Inverter	Delta Inverter
Switches	Schneider Switches
Max XY Speed	15 m/min
Max Z Speed	3 m/min
Reposition Accuracy	±0.02mm
Self Lubrication Systemn	Automatic Time-adjustment
Spindle Cooling	Water Circulation Pump and Water Tank
Tool Cooling	100W-220V Cooling Pump（Circulation Water）
Voltage/Power	AC380V/50HZ/15KW
Machine size	3457×1962×1683mm
Packing size	3600×2200×2150mm
Gross Weight	1900KG

Carving and cutting on granite, marble, sandstone, ceramic, quartz etc.

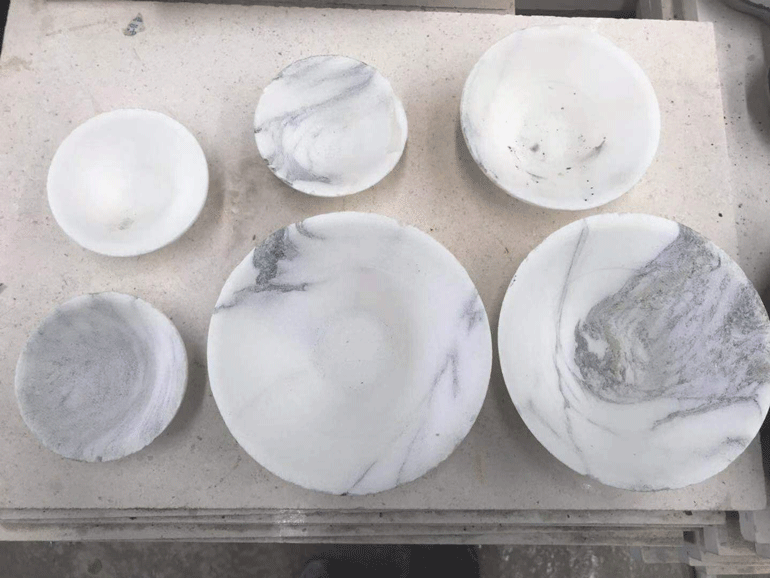

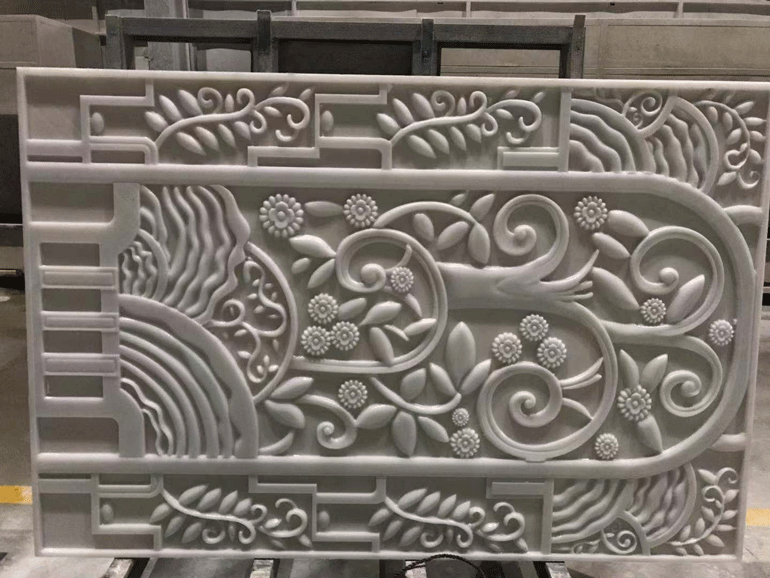

Samples:
