AW7575S

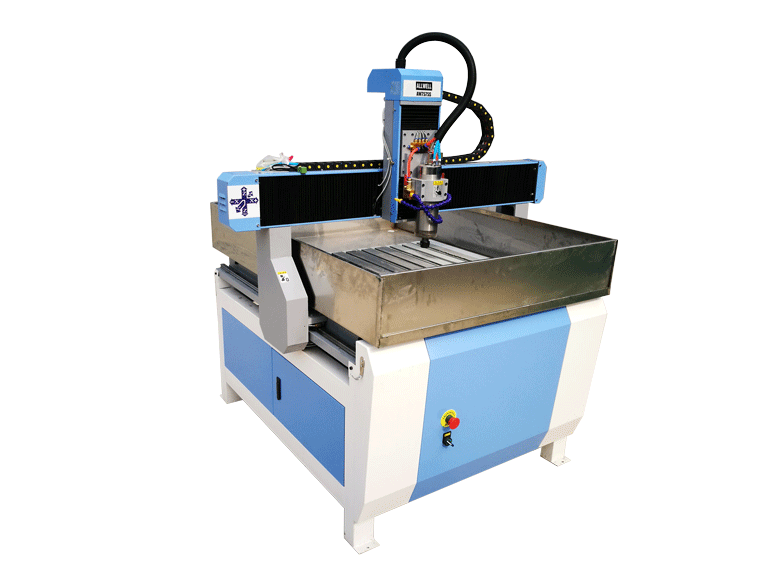

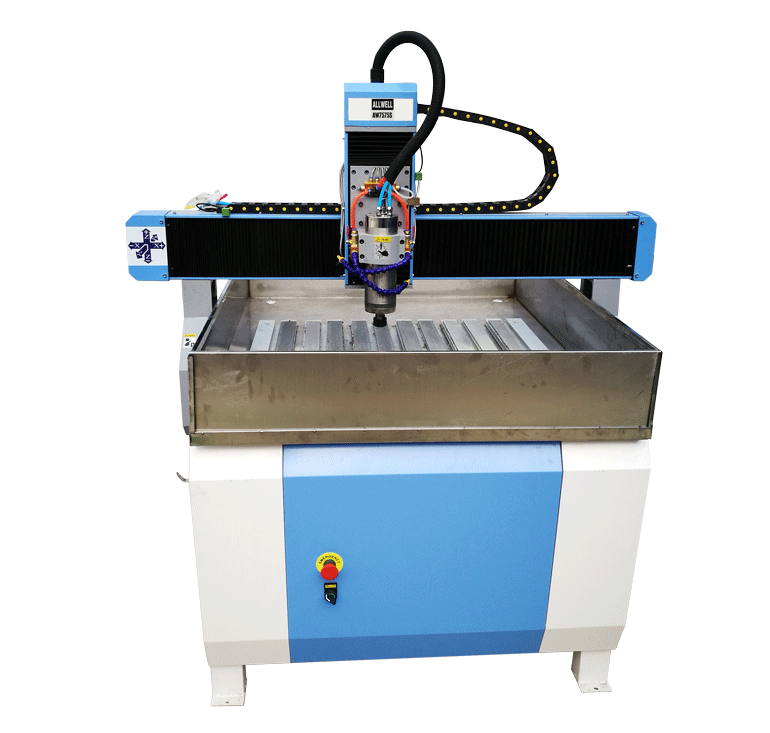

机器图片1.png 机器图片2.png

1. Whole caste iron structure to assure stable working and longer machine life.

2. High speed spindle with 24000 rpm for faster carving and cutting.

3. Z axis motor with break and ball screw transaction leaving no mark on working stone surface.

4. XY axis with ball screw to get high precision producing.

5. Automatic lubrication in all axis for smoother working condition and trouble free.

6. Stainless steel parts and covers for anti-rust and bellows covers on XY axis to increase machine life.

TECHNICAL DATA
Model Number	ALLWELL AW7575S
Working Table Size	850×850mm
X Y Max Working Size	750×750mm
Z axis Max Vertical Movement	175mm
Gantry Height	250mm
Spindle Power	2.2KW (Water Cooling)
Spindle Max Speed	24000 rpm
Cotrol System	NC Studio Control System
XYZ Axis Transmission	Leadshine Step Driver + Ball Screw
Inverter	Delta Inverter
Tools Diameter	3.175-10mm
Reposition Accuracy	±0.02mm
Self Lubrication Systemn	Automatic Time-adjustment
Spindle Cooling	Water Circulation Pump
Tool Cooling	Cooling Pump（Circulation Water）
Voltage/Power	AC220V/50HZ
Machine Size	1450×1400×1600mm
Gross Weight	350KGS

Carving and cutting on granite, marble, sandstone, ceramic, quartz etc.

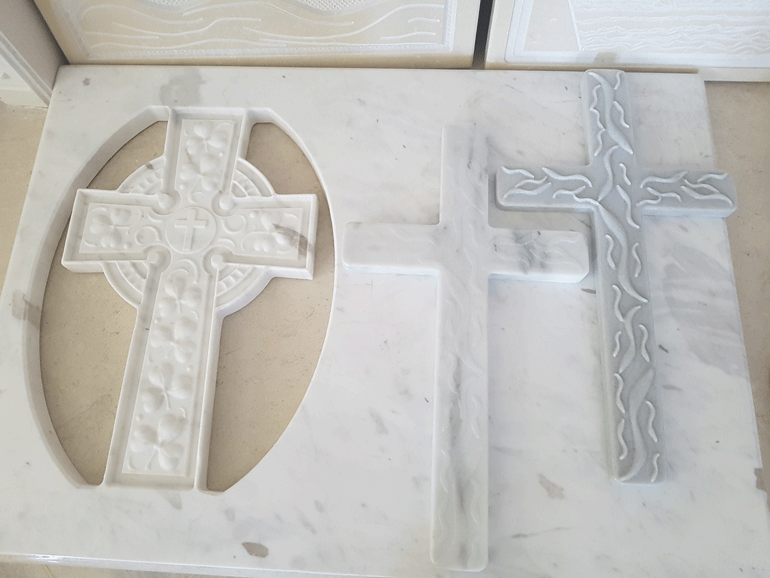

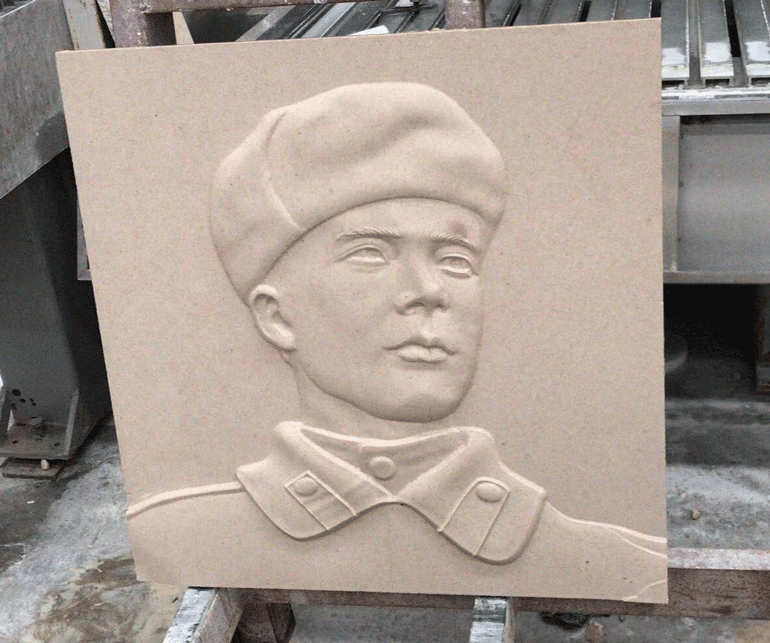

Samples:
