3 AXIS STONE MACHINES

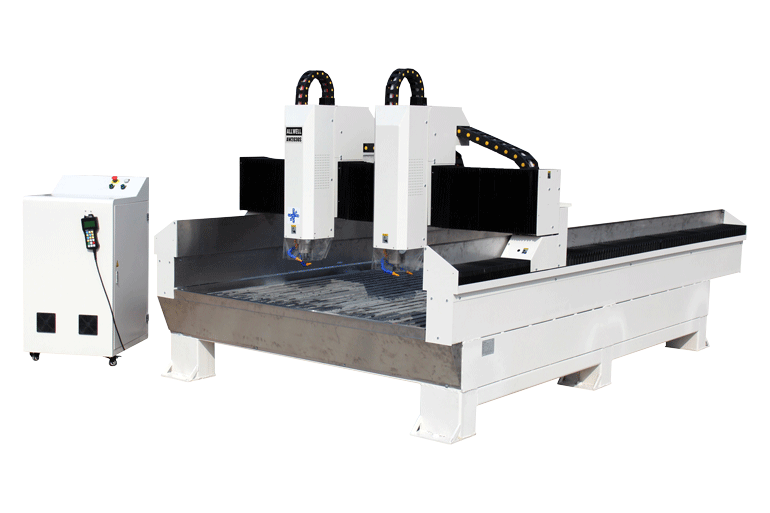

AW2030S-II



FEATURES

TECHNICAL DATA

APPLICATION

1. Rigid structure to assure stable working and longer machine life.

2. Bigger spindle back board and stranger gantry for vibration free machining.

3. High speed spindle with 24000 rpm for faster carving and cutting. Spindle power is optional.

4. Two spindles for repeatable working to get efficient production.

5. AC Servo motor and driver for all axis to get higher speed and higher precision production.

6. Z axis servo motor with break and ball screw transaction leaving no mark on working stone surface.

7. High quality linear guide rail, heavy duty helical rack pinion and gear box in X Y axis to get vibration free even under heavy loading conditions.

8. Automatic lubrication in all axis for smoother working condition and trouble free.

9. Central water tray and movable water tank for easily bed cleaning and friendly environment .

10. Stainless steel parts and covers for anti-rust and bellows covers on XY axis to increase machine life.


TECHNICAL DATA
Model NumberALLWELL AW2030S-II
Working Table Size2200×3300mm
X Y Max Working Size2000×3000mm
Single Head Max Working Size1600*3000mm
Double Heads Max Working Size1000*3000mm
Z axis Max Vertical Movement350mm
Gantry Height455mm
Spindle Power2*5.5KW/6.5KW/7.5KW (Water Cooling)
No.of Head2 Heads
Spindle Max Speed24000 rpm
Cotrol SystemNC Studio Control System
XY Axis Transmission Servo Motor and Driver + Heavy Duty Helical Rack Pinion+ Linear Guide Rail, High precision Planetory Gare Box
Z Axis TransmissionBall Screw
InverterSynphonix Inverter
Max XY Speed15 m/min
Max Z Speed3 m/min
Reposition Accuracy±0.02mm
Self Lubrication SystemnAutomatic Time-adjustment
Spindle CoolingWater Circulation Pump and Water Tank
Tool CoolingCooling Pump(Circulation Water)
Voltage/PowerAC380V/50HZ/17KW
Machine Size2550×3990×1690mm
Gross Weight2200KGS


Carving and cutting on granite, marble, sandstone, ceramic, quartz etc.

Samples:

e430fa8cbb3f5ed9f206f97699b99da.png38646544bfe5aae10df902df5b3dded.png6c18fd74a9f795c9ac3592145eab220.png3e8d90c4cd14289886fc6e336acc113.png
