AW2536S-II

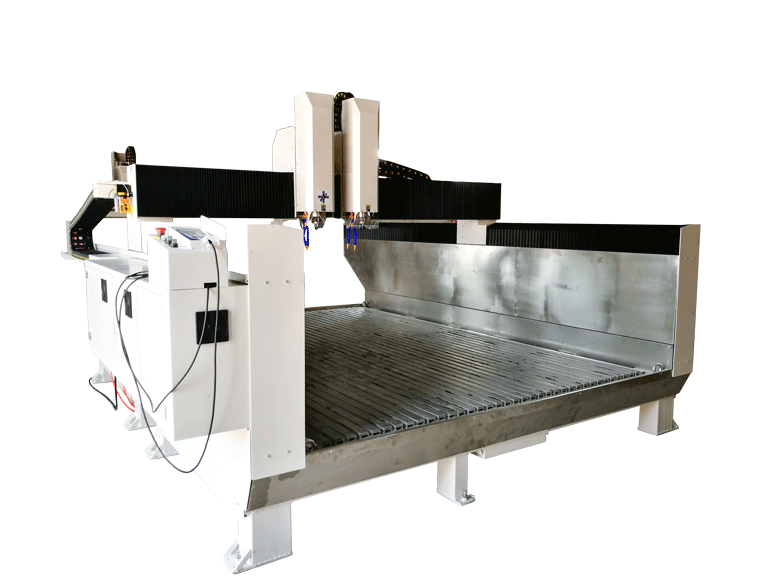

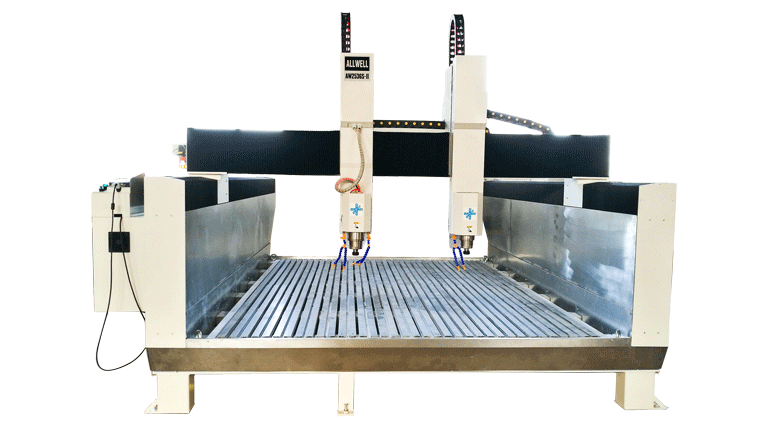

机器图片1.png 机器图片2.png

1. Higher gantry and bigger Z axis working height for production on big and thick stones .

2. Rigid structure to assure stability and longer machine life.

3. Two spindles for repeatable working to get efficient production. Spindle power is optional.

4. High speed spindle with 24000 rpm for faster carving and cutting.

5. AC Servo motor and driver for all axis to get higher speed and higher precision production.

6. Z axis servo motor with break and ball screw transaction leaving no mark on working stone surface.

7. Bigger spindle back board and stranger gantry for better stability and vibration free machining.

8. High quality linear guide rail, helical rack pinion and gear box in X Y axis to get vibration free.

9. Automatic lubrication in all axis for smoother working condition and trouble free.

10. Central water tray and movable water tank for easily bed cleaning and friendly environment .

11. Stainless steel parts and bellows covers on XY axis to increase machine life.

TECHNICAL DATA
Model	ALLWELL AW2536S-II
Working Table Size	2700×3900mm
X Y Max Working Size	2500×3600mm
Single Head Max Working Size	2100*3600mm
Double Heads Max Working Size	1200*3600mm
Z Axis Vertical Movement	600/800mm
Stone Max Height	950mm
Spindle Power	2*6.5KW/7.5KW/9KW
No. of Spindle	2 Heads
XY Axis Transmission	Real Servo Motor and Driver + Heavy Duty Helical Rack Pinion+ Taiwan Linear Guide Rail, High precision Planetory Gare Box
Z Transmission	Taiwan Ball Screw
Inverter	Delta Inverter
Switches	Schneider Switches
Max XY Axis Speed	18 m/min
Max Z Axis Speed	5 m/min
Repositon Accuracy	±0.02mm
Voltage/Power	AC380V/50HZ/17KW
XY Protective Cover	Bellows Cover
Water Proof Table	Stainless Steel Sink
Self Lubrication Systemn	Automatic Time-Adjustment
Spindle Cooling	Water Circulation Pump and Water Tank
Tool Cooling	100W-220V Cooling Pump（Circulation Water）
Cotrol System	NC Studio Control System
Machine Size	4150×5150×2900mm
Gross Weight	2800KGS

Carving and cutting on square pillar, thick stones such as granite, marble, sandstone, ceramic, quartz etc.

Samples:

u=4249712885,565964426&fm=15&gp=0.png timg-(1).png
